Description

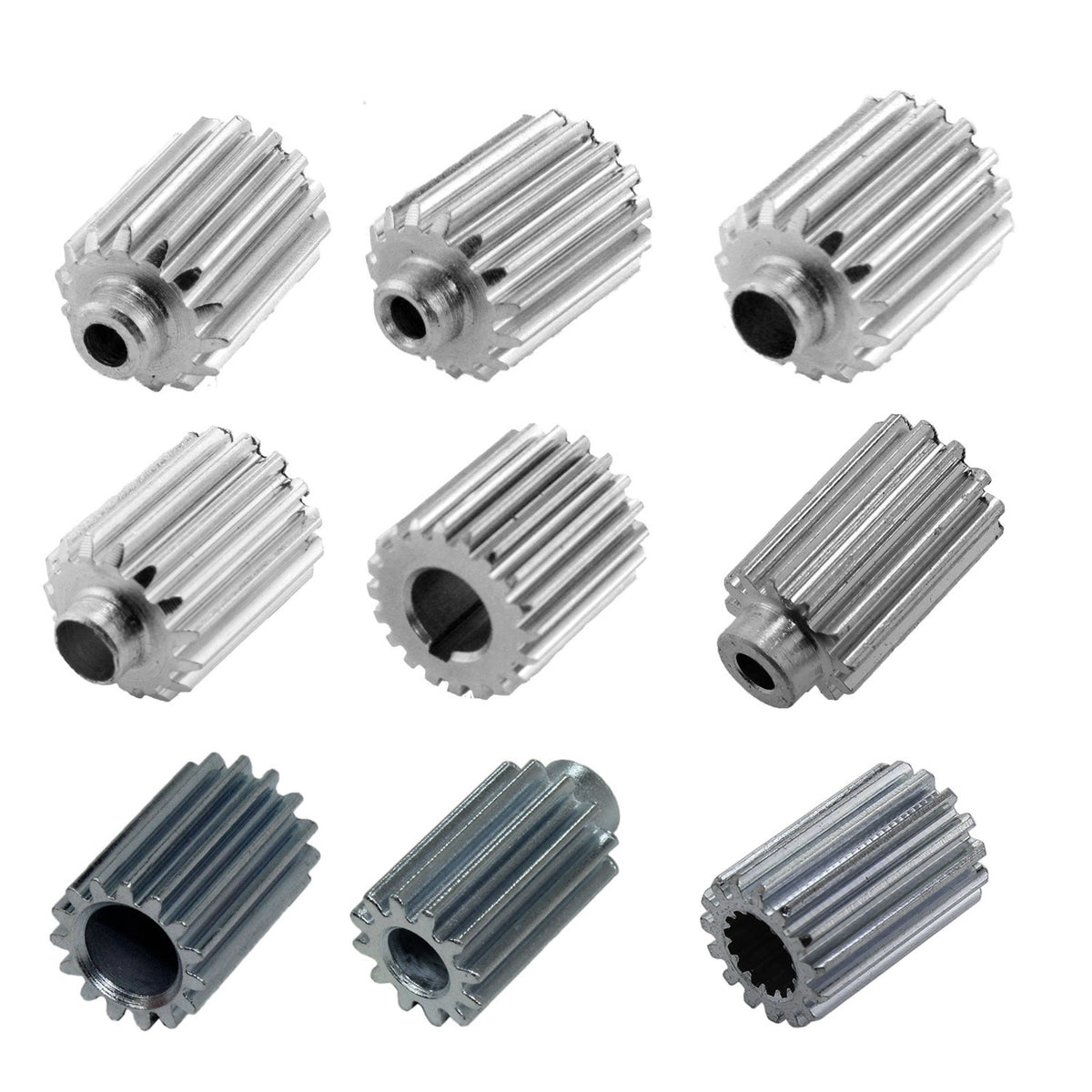

32dp pinion gear 32 DP Pinion Gears — AndyMarkThese 32DP Pinion Gears are used to transfer the rotational output from the motor to other mechanical systems. Description Specifications Documentation These 32DP Pinion Gears are used by installing on a motor shaft to transfer the rotational output from the motor to other mechanical systems. Part Number Tooth Count Bore Outside Dia (in.) Pitch Dia (in.) Weight (lbs) X (in) Y (in) Z (in) am 3657 12 5mm 0. 438 0. 375 0. 01 0. 44 0. 44 0. 75 am 4032 12
These 32DP Pinion Gears are used to transfer the rotational output from the motor to other mechanical systems.- Description
-
These 32DP Pinion Gears are used by installing on a motor shaft to transfer the rotational output from the motor to other mechanical systems.
Part Number Tooth Count Bore Outside Dia (in.) Pitch Dia (in.) Weight (lbs) X (in) Y (in) Z (in) am-3657 12 5mm 0.438 0.375 0.01 0.44 0.44 0.75 am-4032 12 0.125 0.438 0.375 0.01 0.44 0.44 0.75 am-4319 14 0.125 0.500 0.438 0.02 0.50 0.50 0.75 am-4321 14 5mm 0.500 0.438 0.02 0.50 0.50 0.75 am-4320 15 0.125 0.531 0.469 0.02 0.53 0.53 0.75 am-4322 15 5mm 0.531 0.469 0.02 0.53 0.53 0.75 am-3482 15 8mm 0.531 0.469 0.02 0.53 0.53 0.80 am-4148 15 Falcon Spline 0.531 0.469 0.03 0.53 0.53 0.75 am-4323 20 8mm 0.688 0.625 0.04 0.69 0.69 0.75 -
- Bore: 5 mm Round, 8 mm Round, Falcon Spline, 0.125 in. Round
- Diametral Pitch: 32
- Finish: Zinc Plated
- Material: 4140 Steel
